EVOLUTION 2 E2T21200PHR

Here are the specifications for the Evolution 2 petrol engine-driven pressure washer:

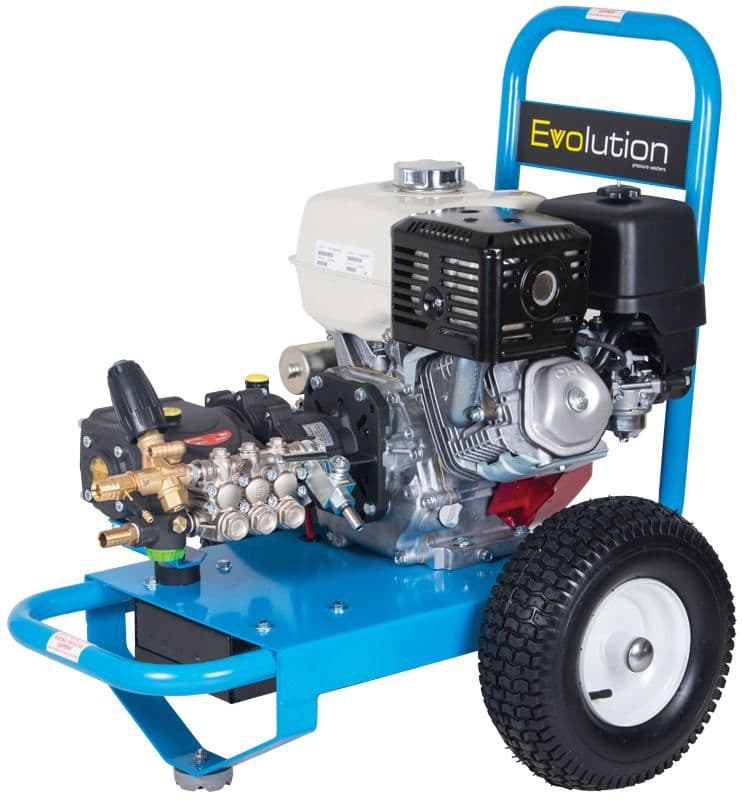

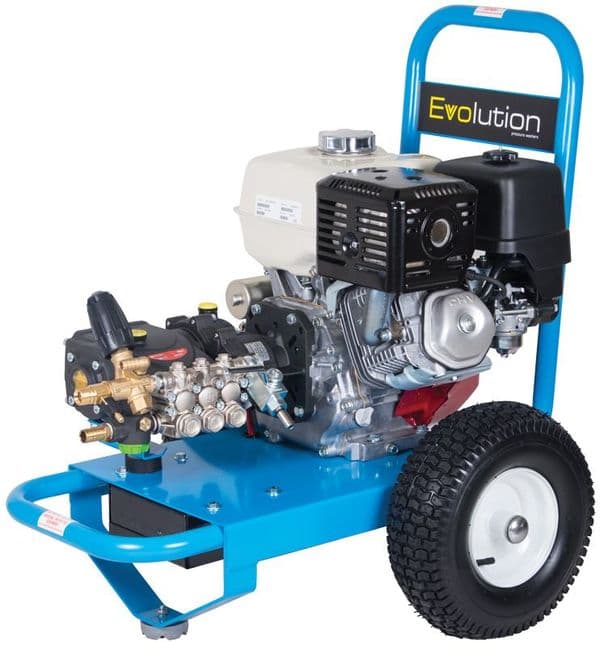

Evolution 2 - High-Pressure Washer

• Engine Type: Honda GX390 petrol engine
• Engine Oil: 10w30
• Pump Oil: 15w40
• Gearbox Oil: 80w90

Weight and Dimensions:

• Weight: 42.8 kg
• Dimensions:
  • Length (L): 630 mm
  • Width (W): 530 mm
  • Height (H): 810 mm

Noise Level:

• LWA (Sound Power Level): 111 dB

High-Pressure Hose:

• Length: 8 meters
• Type: Single wire
• Inside Diameter (ID): 5/16"

Suction Hose:

• Length: 3 meters
• Features: Equipped with a 50 Mesh weighted filter

Gun & Lance:

• Components: Gun with extension and single lance extension

Nozzle Head:

• Type: Variable angle with high-low pressure

Chemical Injection:

• Type: Low-pressure chemical injector

Trolley:

• Construction: Powder-coated steel
• Wheels: 10" pneumatic wheels

Pressure Rating:

• Maximum Pressure: 200 Bar (2900 psi)

Flow Rate:

• Maximum Flow Rate: 21 Liters per minute (Lpm)

Pump Type:

• Pump Manufacturer: Interpump
• Pump Series: 59 series

Gearbox:

• Drive System: 2:1 gearbox
• Pump Speed: 1450 revolutions per minute (Rpm)

Additional Features:

• Unloader Valve: Return to tank unloader valve
• External Chemical Injector: Yes
• Prime Valve: Easy prime ball valve
• High-Pressure Hose Length: 10 meters
• Suction Hose Length: 3 meters

Oil Requirement:

• Engine Oil Required: 10w30 non-synthetic engine oil (not included)

This Evolution 2 pressure washer is designed for versatile heavy-duty industrial and commercial cleaning applications. It is powered by a reliable Honda GX390 petrol engine and features a robust Interpump 59 series pump. The machine is built for performance, reliability, and ease of use. Specific weight and dimensions are provided for the unit. Please ensure to use the recommended engine oil for proper maintenance and operation.

• E2T21200PHR Data Sheet
